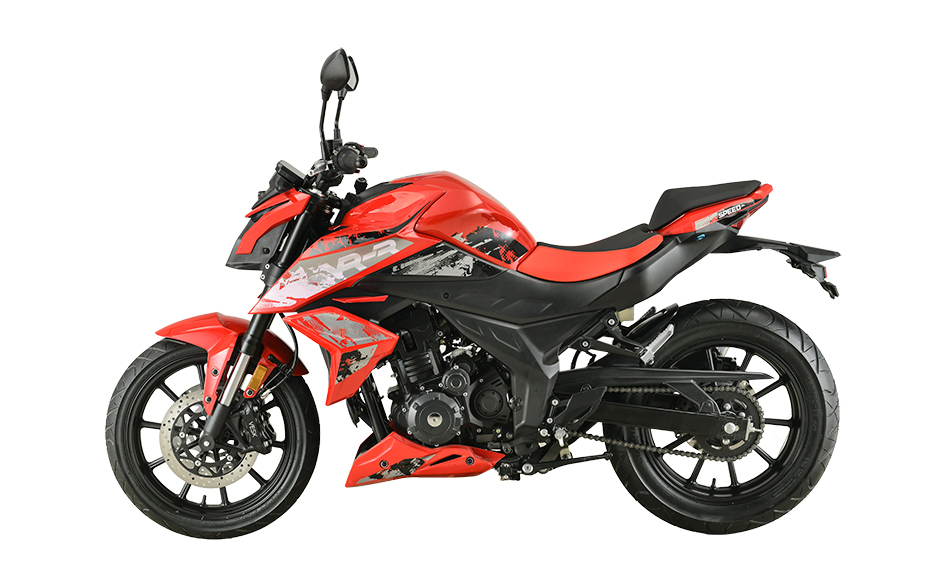

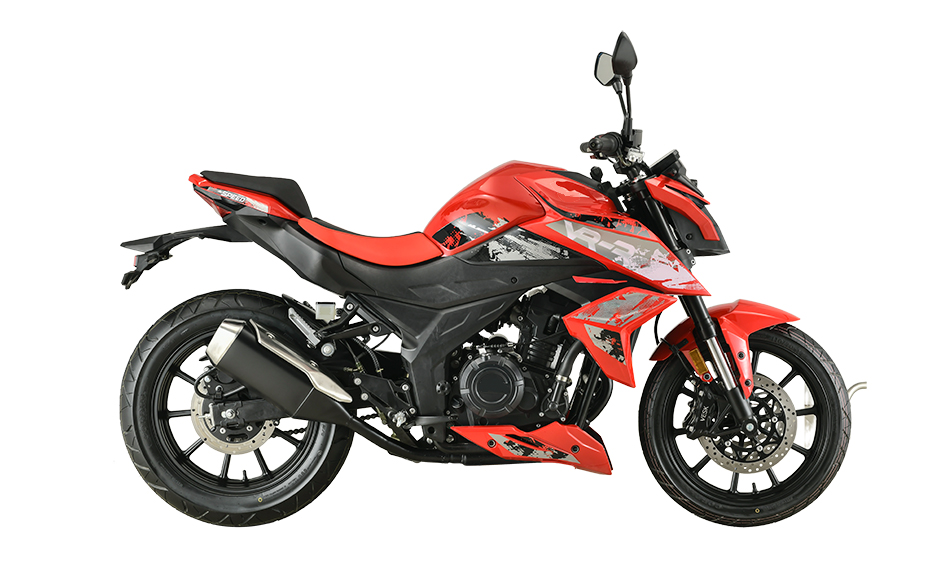

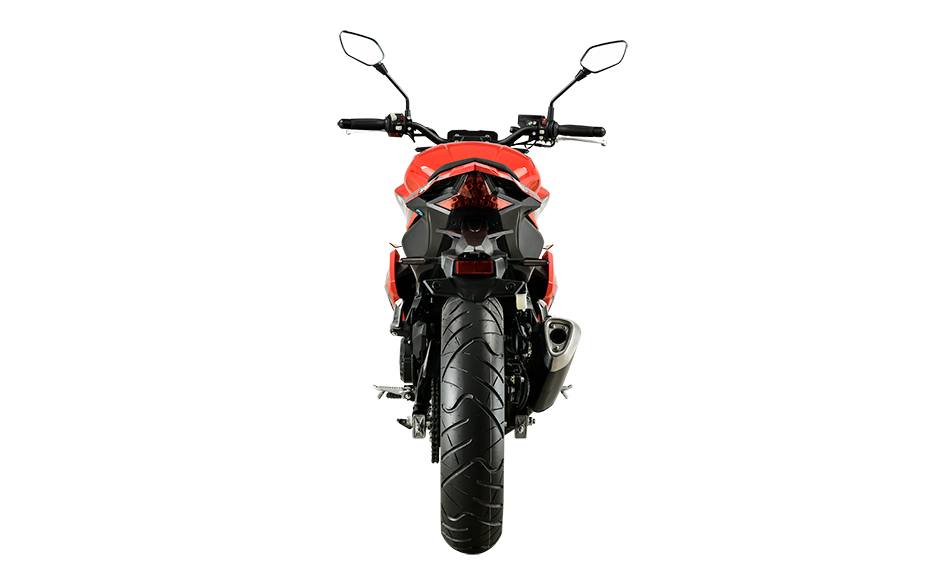

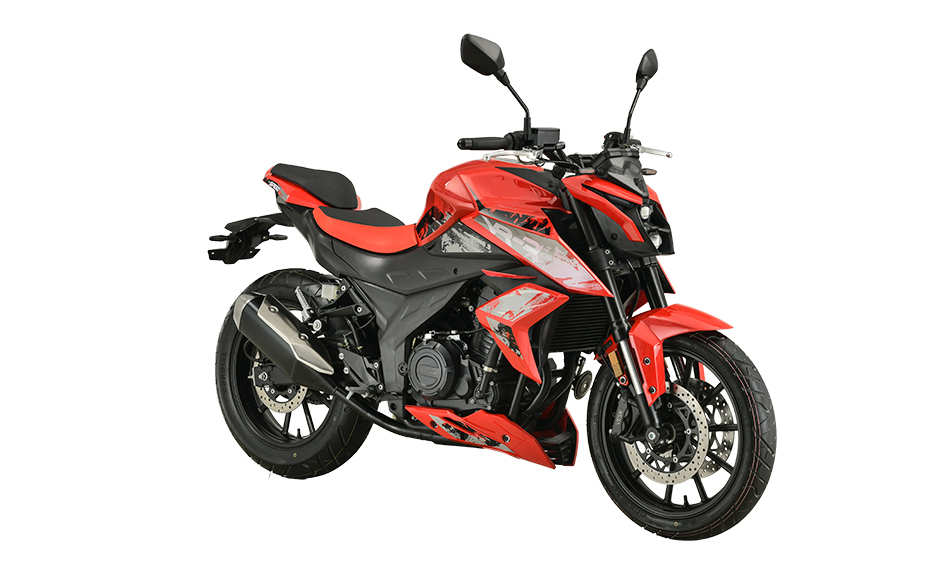

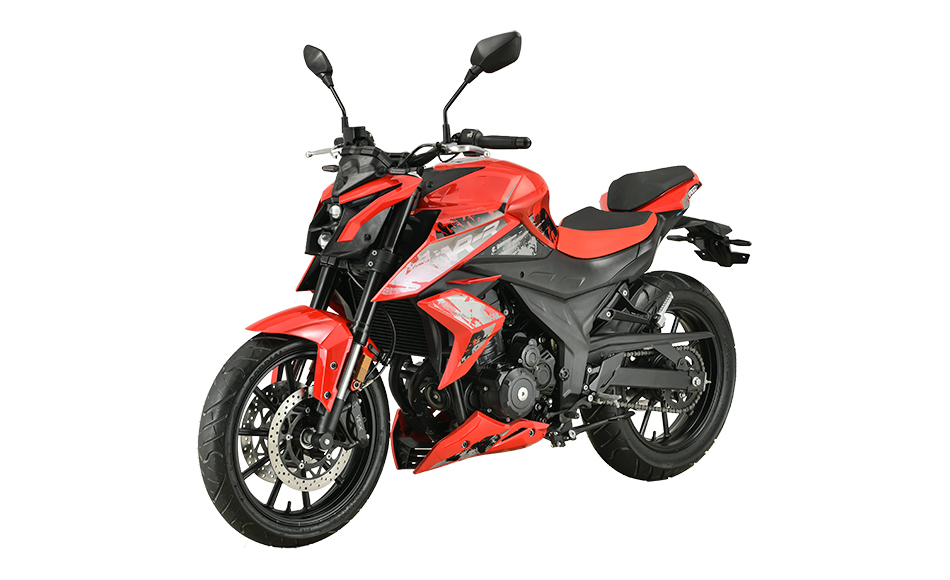

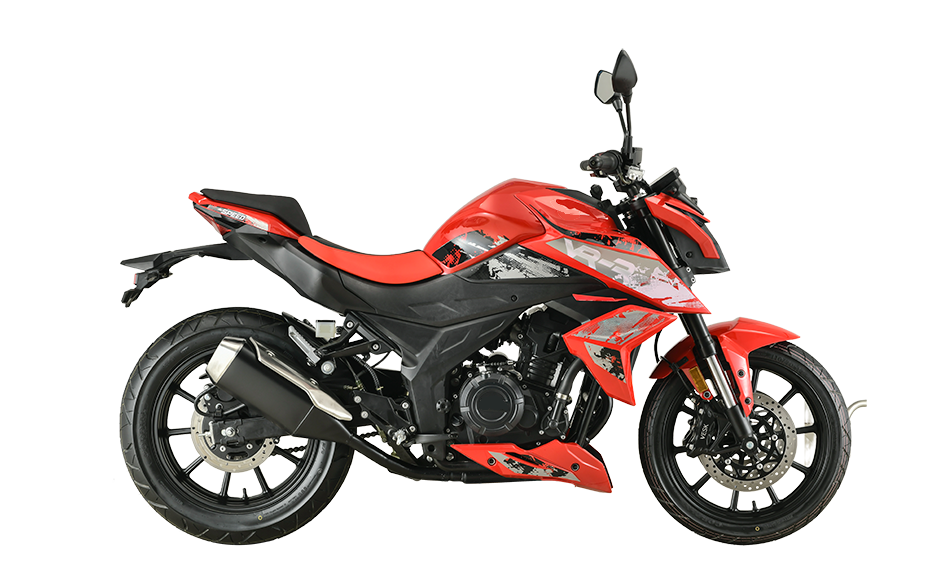

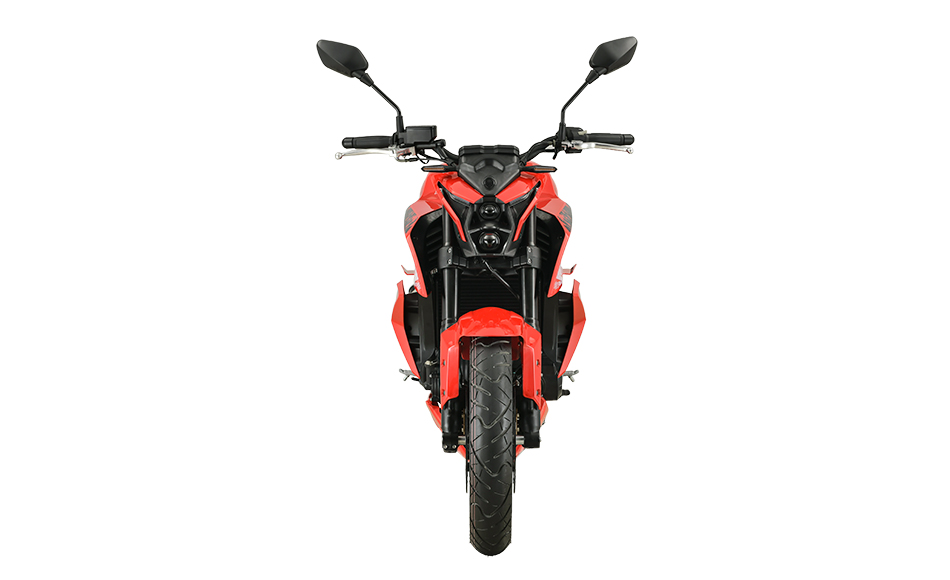

JM500-3
JM500-3
Practical
demonstration
details
Basic parameters
| 250CC | 500CC | |
| Engine | 249cc, water-cooled, Dualcylinder parallel, four-stroke cycle, OHC | 472cc, water cooled, Dual cylinder parallel, four-stroke cycle,OHC |
| Transmission type | Six levels | Six levels |
| Bore×Stroke | 54.5mm*53.5mm | 68mm*65T |
| Compression Ratio | 11:1 | 10.5:1 |
| Fuel supply | EFI | EFI |
| Ignition | ECU | ECU |
| Starting | Electric start | Electric start |
| Drive Train | Chain drive | Chain drive |
| Minimum fuel | 340g/kw.h | 340g/kw.h |
| consumption rate | ||
| Max. Power | 19.3KW/9000r/min | 36.5KW/8500r/min |
| Max. Torque | 26N.m/6500r/min | 43N.m/6500r/min |
| Suspension/ Front | inverted front shock absorber | inverted front shock absorber |
| Tires/ Front | 110/70-17 | 110/70-17 |
| Rims | 3.0×17 | 3.0×17 |
| Tires/ Rear | 140/70-17 or 150/70-17 | 150/70-17 |
| Rims | 4.0×17 | 4.0×17 |
| Overall Size(L×W×H) | 2025×815×1075mm | 2025×815×1075mm |
| Seat Height(mm) | 780mm | 780mm |
| Wheelbase(mm) | 1400mm | 1400mm |
| Ground Clearance(mm) | 135mm | 135mm |
| Battery | 12V8Ah | 12v84h |
| Fuel Capacity | 18L | 18L |
| Max. Load | 150KG | 150KG |
| Max. Speed | 140km/h | 160km/h |
